Graph Theory for Machine Learning

Structure, Connection, and Meaning

EDA for Machine Learning

The Nature of Graphs

Networks Are Everywhere

Graphs appear whenever entities are connected:

  • Social networks: People linked by friendship, collaboration, influence
  • Biological networks: Proteins linked by interactions, genes by regulation
  • Information networks: Web pages linked by hyperlinks, papers by citations
  • Knowledge graphs: Concepts linked by semantic relationships

The mathematical abstraction—nodes and edges—unifies these diverse domains.

Understanding and Prediction

Throughout this book we have seen that understanding and decision support are intertwined.

Graph analysis makes this especially vivid.

Perspective Question
Prediction Which nodes will connect next? What should we recommend?
Understanding What communities exist? Who is influential? Why?

These perspectives are complementary—structure enables prediction, and prediction reveals structure.

The Questions Graphs Answer

Structural questions (understanding):

  • What communities or clusters exist?
  • Which nodes are central or influential?
  • How does information or influence flow?

Predictive questions (decision support):

  • Will these two nodes connect? (link prediction)
  • What should this user see next? (recommendation)
  • What’s the shortest path from here to there? (routing)

Three Examples

We explore graphs through three examples of increasing complexity:

Example Domain Key Concepts
Zachary’s Karate Club Social network Community detection, centrality
MovieLens Recommendations Bipartite graphs, projection
LearningGraph Knowledge graph Typed nodes, path queries, gap analysis

Each illuminates different aspects of graph structure and different analytical questions.

Example 1: Zachary’s Karate Club

The Story

In the 1970s, sociologist Wayne Zachary studied a university karate club.

A conflict arose between the instructor (Mr. Hi) and the club president (John A).

The club split. Zachary had recorded who interacted with whom outside the club.

The question: Could the social network predict which faction each member would join?

The Network

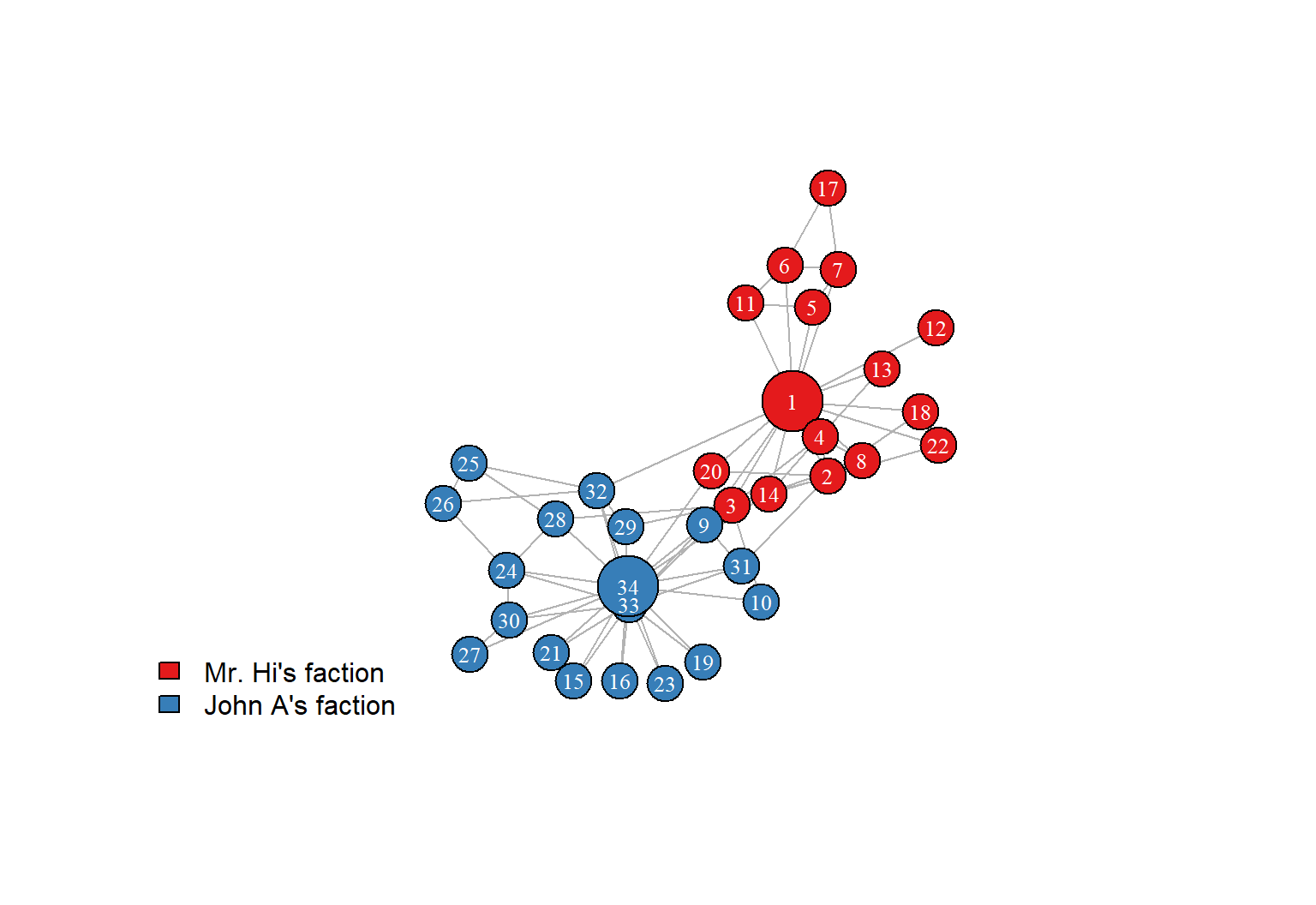

Figure 1: Zachary’s Karate Club network (34 members, 78 connections)

What the Network Reveals

Visual inspection already suggests structure:

  • Two dense regions with sparse connections between them
  • Node 1 (Mr. Hi) and node 34 (John A) are hubs of their respective groups

Zachary’s result: The network correctly predicted 33 of 34 members’ choices.

The one “misclassified” member (node 9) had stronger ties to Mr. Hi’s group but followed his close friend to John A’s faction.

Centrality: Who Matters?

Degree centrality: How many connections does a node have?

Betweenness centrality: How often does a node lie on shortest paths between others?

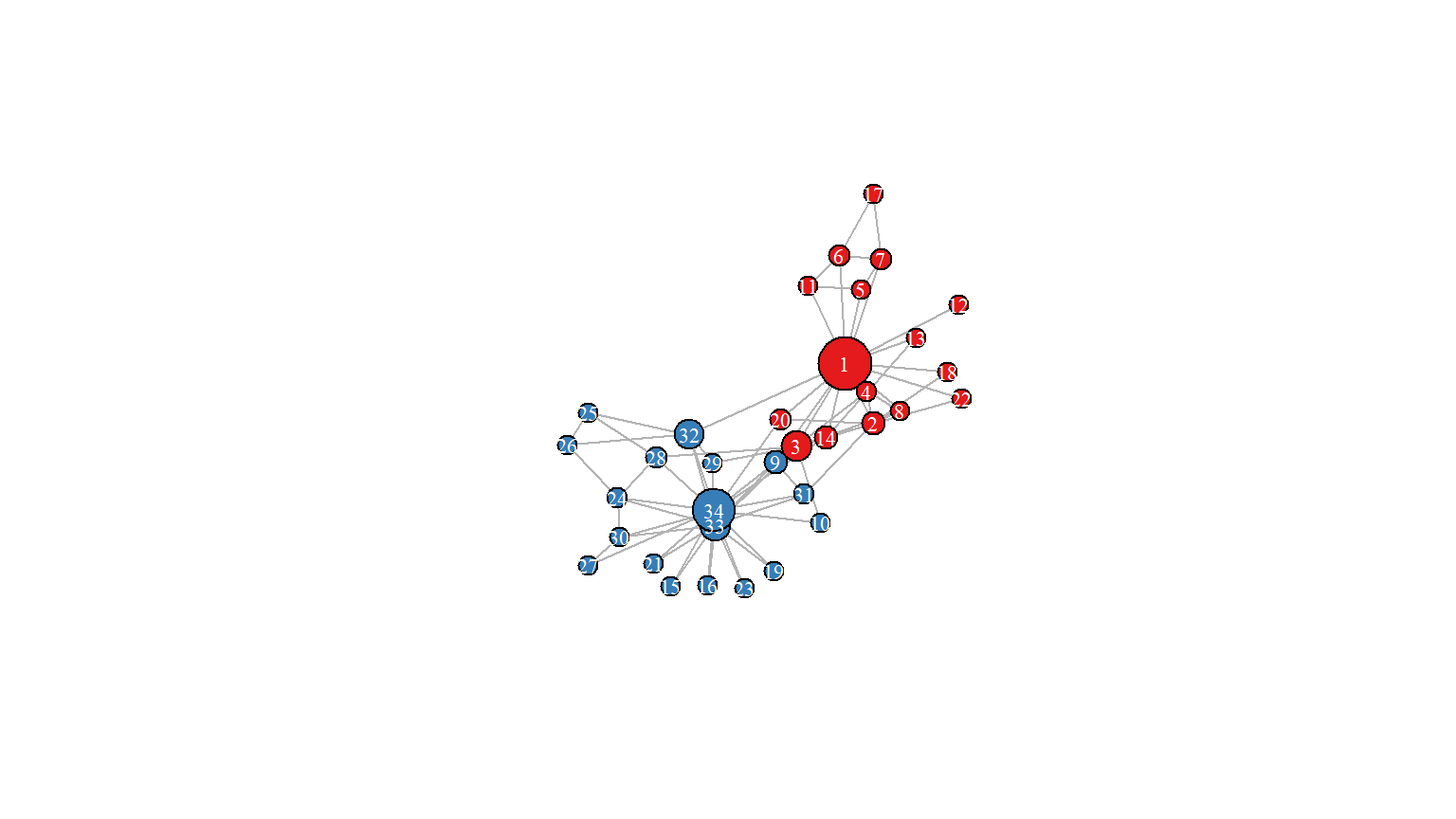

Figure 2: Karate Club with nodes sized by betweenness centrality

Node 1 (Mr. Hi) has highest betweenness—he’s the bridge to many members.

Community Detection

Can an algorithm recover the factions without knowing the ground truth?

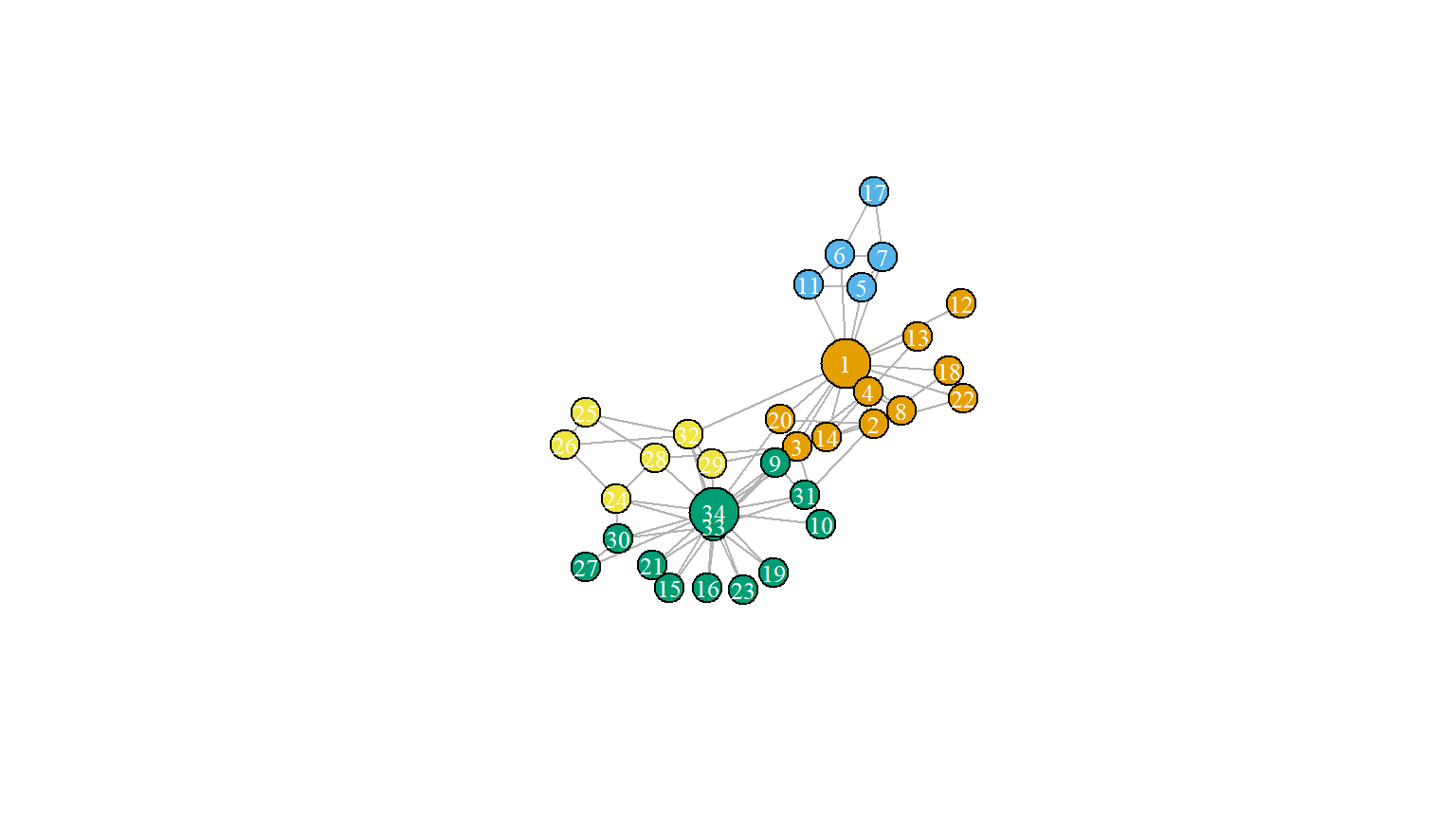

Figure 3: Communities detected by Louvain algorithm

The Louvain algorithm finds a partition very close to the actual split.

Prediction Meets Understanding

The Karate Club illustrates the dual perspective:

Understanding: The network structure reveals social cohesion patterns. Communities exist because people preferentially associate with similar others.

Prediction: That same structure predicts future behavior. When forced to choose, people follow their network ties.

This is the power of graph analysis: structure is predictive because structure reflects mechanism.

Example 2: MovieLens

The Setting

MovieLens is a movie recommendation dataset from the GroupLens research lab.

The data: Users rate movies on a 1–5 scale.

The question: Given a user’s rating history, what movies should we recommend?

Bipartite Structure

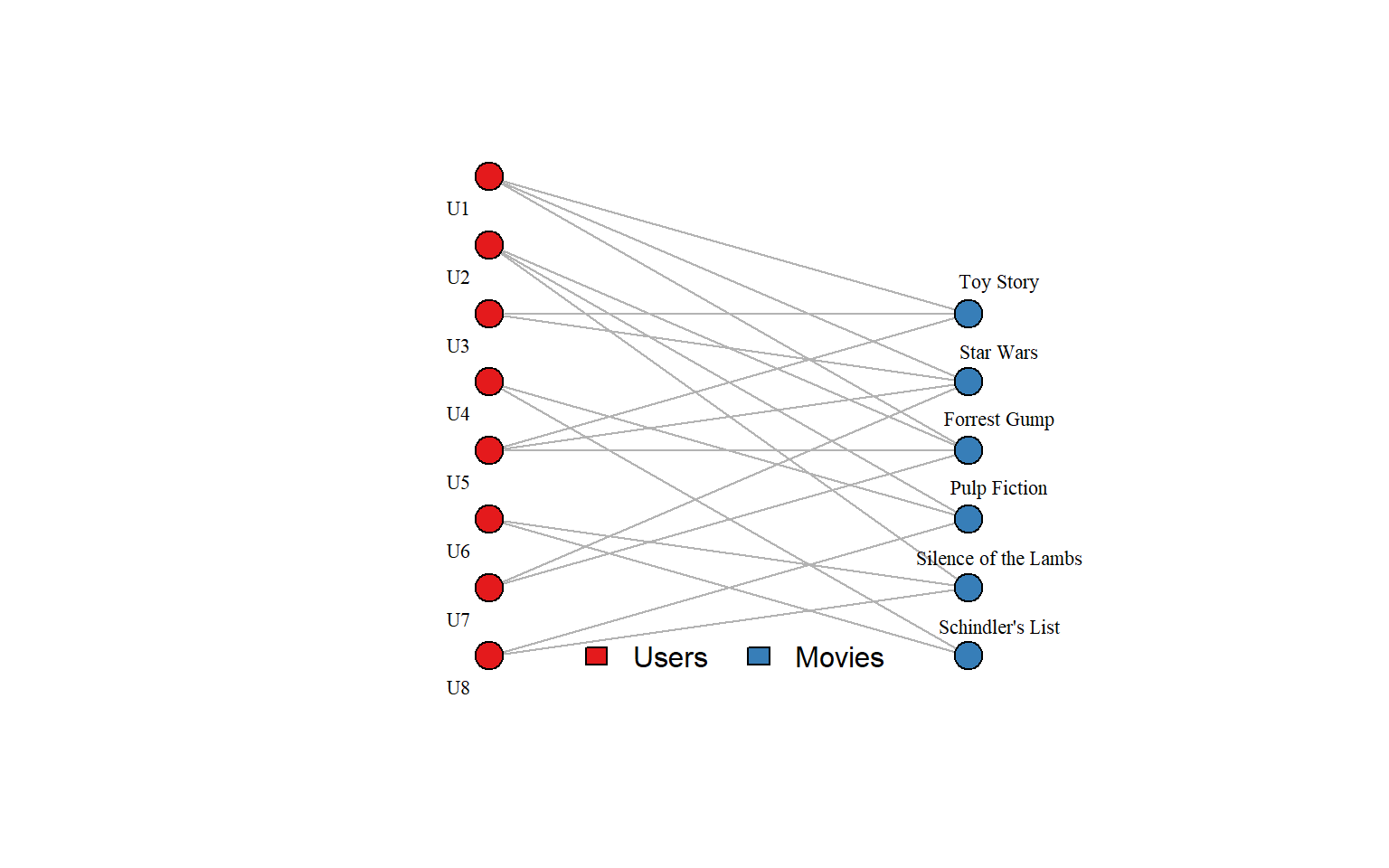

Figure 4: A bipartite graph connecting users to the movies they rated.

Users and movies are different types of nodes. Edges connect users to movies they’ve rated.

The Recommendation Question

Collaborative filtering idea: Users with similar taste will like similar movies.

Graph formulation:

  • If User A and User B both rated Movie X highly…
  • …and User B also rated Movie Y highly…
  • …then recommend Movie Y to User A.

This is a path query: find movies reachable through similar users.

Projection: User Similarity

We can “project” the bipartite graph onto users:

Two users are connected if they rated the same movie. This projection enables standard graph algorithms on user similarity.

Figure 5: User projection: U1 and U2 both rated Forrest Gump (red), creating a projected edge (black).

From Structure to Prediction

Understanding: The projected graph reveals user clusters—groups with similar taste.

Prediction: Recommendations come from highly-connected neighbors in this similarity graph.

The insight: Recommendation is fundamentally about graph structure. Collaborative filtering asks: “What do my graph neighbors like that I haven’t seen?”

Example 3: LearningGraph

Knowledge Graphs

A knowledge graph represents structured knowledge:

  • Nodes have types (Person, Skill, Course, Work-Role)
  • Edges have labels (has_skill, requires, teaches)
  • Properties attach to edges (proficiency level)

This is richer than a simple network: it encodes semantics.

The LearningGraph

Table 1: LearningGraph structure
Node Types Edge Types
Learner (6) has_skill (learner → skill)
Skill (18) requires_skill (role → skill)
Work Role (3) prerequisite (skill → skill)
Course (15) teaches (course → skill)
Competency (7) skill_in_competency (skill → competency)

Based on the IC Data Science Competency Resource Guide (2023).

Inspired by Workera.ai’s skills-intelligence platform.

The Schema

Table 2: LearningGraph edge schema
Edge Type Source Target Property Semantics
has_skill learner skill proficiency current level
requires_skill work_role skill proficiency minimum threshold
prerequisite skill skill — conceptual dependency
teaches course skill proficiency maximum ceiling

The schema defines what assertions are well-formed—enabling both validation and inference.

Skill Prerequisites as a DAG

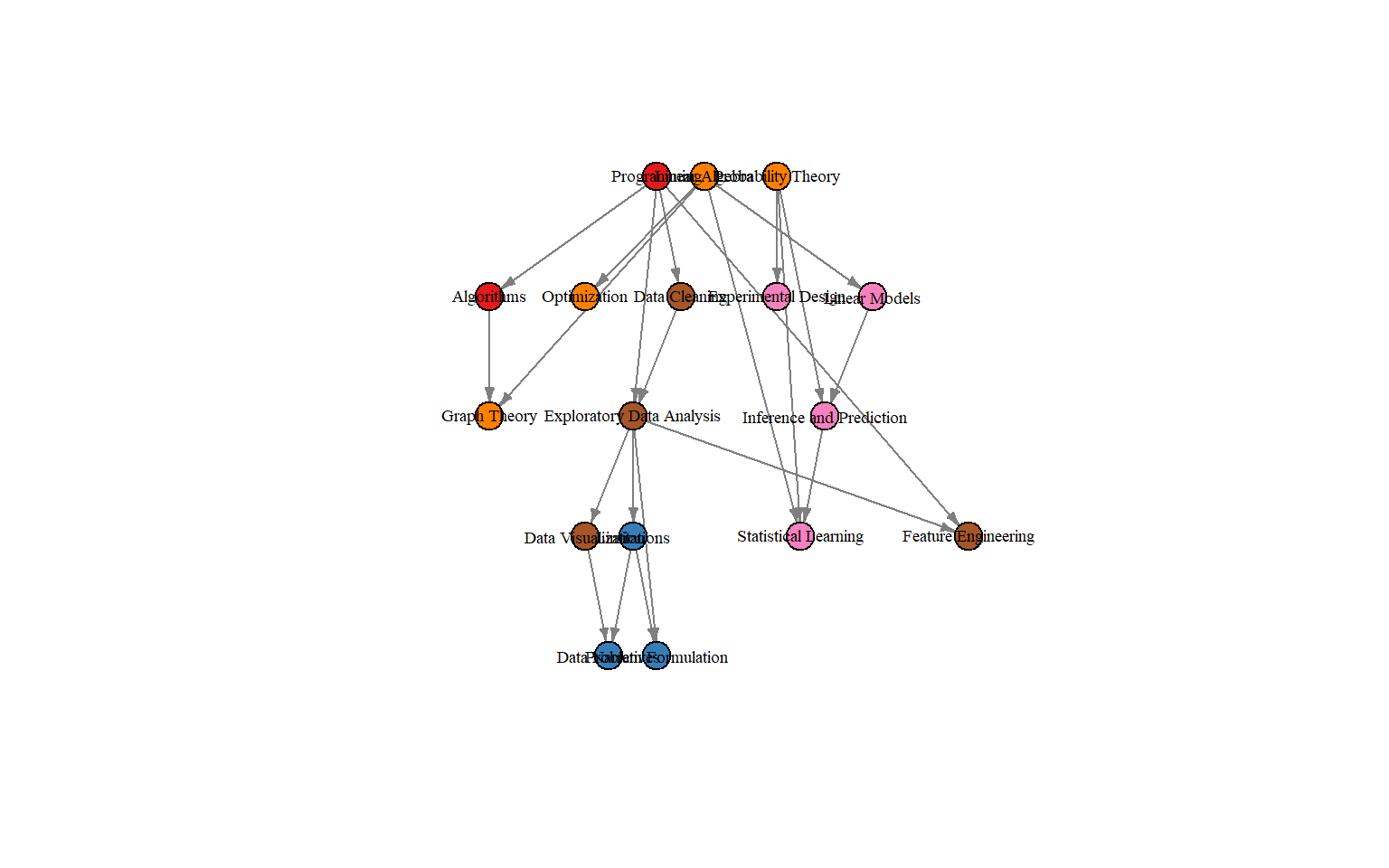

Figure 6: Skills dependent on prerequisite skills, a Directed Acyclic Graph (DAG). Note: Courses teach these skills but may bundle them differently.

Entry point skills: Programming, Data Collection, Probability Theory, Linear Algebra

Gap Analysis

Question: What skills does Alice need to become a Data Scientist?

Table 3
Skill Current Required Gap
Exploratory Data Analysis 1 3 2
Inference and Prediction 0 2 2
Statistical Learning 0 2 2
Feature Engineering 0 2 2
Problem Formulation 0 2 2
Data Narratives 0 2 2
Limitations 0 2 2
Programming 1 2 1

Learning Paths: From Profile to Goal

A learning path isn’t simply a route from one skill to another.

Realistically, it’s a path from a learner’s current skill profile to a target skill profile.

Alice’s question: Given everything I already know, what’s the shortest path to Statistical Learning?

Skill Proficiency
Exploratory Data Analysis 1
Linear Algebra 3
Linear Models 2
Optimization 2
Probability Theory 3
Programming 1

Computing the Learning Path

Skills Alice must acquire:
1. Inference and Prediction
2. Statistical Learning

The algorithm finds all missing prerequisite skills and returns them in a valid learning order.

Why This Isn’t Exponentially Complex

Concern: “There are too many possible skill profiles!”

Resolution: We don’t search profile space—we search the prerequisite DAG.

Approach Search Space Complexity
All profiles \(2^{|skills|}\) Exponential
DAG from current profile Ancestors of target \(O(V + E)\)

Alice’s profile defines her frontier, the skills adjacent to her current skill profile. We only traverse from there to the target.

Visualizing the Path

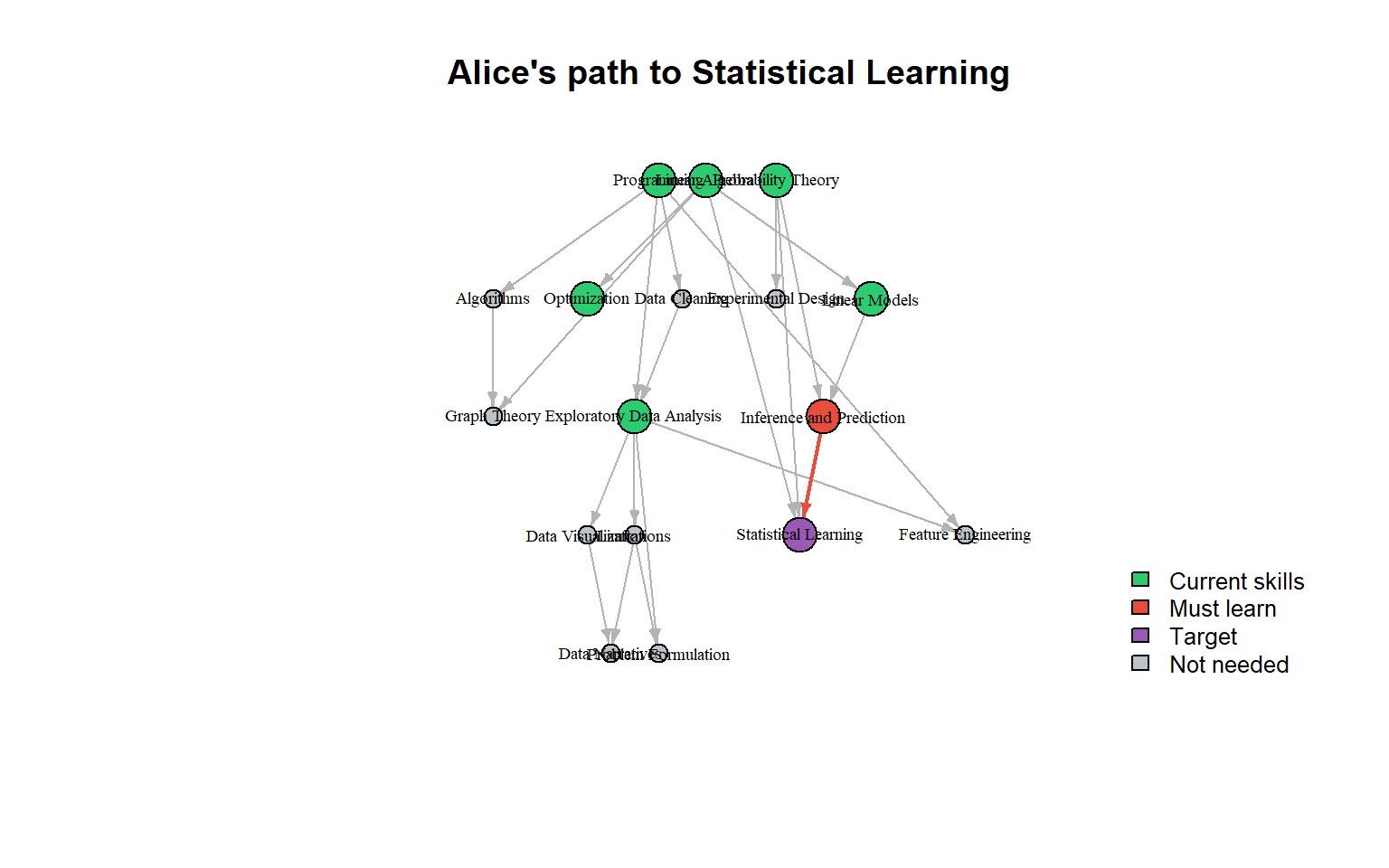

Figure 7: Alice’s learning path to Statistical Learning

Green = skills Alice has. Red = skills to acquire. Purple = target.

Different Profiles, Different Paths

Table 4: Learning paths vary by starting profile
Learner Steps Required
Alice 2
Beth 3
Charlie 0
Dan 1

Key insight: Learning paths are properties of learner-skill pairs, not skills alone.

The DAG of prerequisite skills is fixed; the learner’s position on it varies. The path to Statistical Learning doesn’t exist—only Alice’s path, Bob’s path, Carol’s path.

The Algorithm

lg_learning_path <- function(lg, learner_id, target_skill) {

  # 1. Get learner's current skills
  current <- get_learner_skills(lg, learner_id)

  # 2. Find all ancestors of target (transitive prerequisites)
  ancestors <- igraph::subcomponent(prereq_graph, target, mode = "in")

  # 3. Filter to skills learner doesn't have
  missing <- setdiff(ancestors, current)

  # 4. Return in topological order (valid learning sequence)
  igraph::topo_sort(igraph::induced_subgraph(missing))
}

This is graph reachability, not combinatorial search.

Real-World Application: Workera

This isn’t hypothetical. Companies like Workera (co-founded by Kian Katanforoosh, with Andrew Ng as chairman) have built businesses on exactly this structure.

Workera Capability Graph Interpretation
3,000+ micro-skills Fine-grained skill nodes
Personalized learning paths Shortest path through prerequisites
Skill gap assessment Compare current vs. required subgraphs
“Sage” AI mentor LLM grounded by knowledge graph

The Dual Perspective Again

Understanding: The knowledge graph encodes domain expertise—what skills exist, how they relate, and the work-roles that require them.

Prediction/Decision Support: Given where a learner is, what should they learn next? What’s the most efficient path to their goal?

This knowledge graph goes beyond storing knowledge; it enables reasoning about learning paths.

With these examples as motivation, we now turn to the formal concepts underlying graph analysis.

Fundamental Concepts

Nodes and Edges

A graph \(G = (V, E)\) consists of:

  • \(V\) = set of vertices (nodes)
  • \(E\) = set of edges (connections between nodes)

Undirected: Edge \(\{u, v\}\) is symmetric (friendship)

Directed: Edge \((u, v)\) has direction (follows, links to)

Weighted: Edges carry numerical values (distance, strength)

Labeled: Edges have types (prerequisite, teaches, knows)

Matrix Representations

The adjacency matrix \(A\) encodes connections:

\[A_{ij} = \begin{cases} 1 & \text{if edge } (i,j) \in E \\ 0 & \text{otherwise} \end{cases}\]

The degree matrix \(D\) is diagonal:

\[D_{ii} = \sum_j A_{ij} = \text{degree of node } i\]

The Laplacian \(L = D - A\) has deep connections to graph structure.

Paths and Connectivity

A path is a sequence of edges connecting two nodes.

Shortest path: The path with minimum total weight (or fewest edges).

A graph is connected if a path exists between every pair of nodes.

Connected components: Maximal connected subgraphs.

A directed acyclic graph (DAG) has no cycles—crucial for prerequisite structures.

Measuring Importance

Centrality: Who Matters?

Different questions → different centrality measures:

Measure Question Karate Club Leader
Degree Who has the most connections? Mr. Hi
Betweenness Who controls information flow? Mr. Hi
Closeness Who can reach everyone quickly? Central members
PageRank Who is endorsed by important others? Both leaders

Betweenness Centrality

\[\gamma(v) = \sum_{s \neq v \neq t} \frac{\sigma_{st}(v)}{\sigma_{st}}\]

where \(\sigma_{st}\) = number of shortest paths from \(s\) to \(t\)

and \(\sigma_{st}(v)\) = number of those paths passing through \(v\)

Interpretation: Nodes with high betweenness are bridges—removing them fragments the network.

PageRank

Originally for ranking web pages. The idea:

A page is important if important pages link to it.

Random surfer model: Follow links randomly, occasionally jump to a random page. PageRank = long-run fraction of time at each node.

\[\text{PR}(v) = \frac{1-d}{N} + d \sum_{u \to v} \frac{\text{PR}(u)}{\text{out-degree}(u)}\]

where \(d \approx 0.85\) is the damping factor, and out-degree counts out-going edges.

Finding Structure

Communities

A community is a group of nodes more densely connected internally than externally.

Modularity \(Q\) measures community quality by comparing actual edges to expectation:

\[Q = \frac{1}{2m} \sum_{ij} \left[ A_{ij} - \frac{k_i k_j}{2m} \right] \delta(c_i, c_j)\]

where \(m\) = total edges, \(k_i\) = degree of node \(i\), and \(\delta(c_i, c_j) = 1\) if \(i, j\) share a community.

\(Q > 0.3\) typically indicates significant community structure.

Community Detection Algorithms

Algorithm Approach Complexity
Girvan-Newman Iteratively remove high-betweenness edges Slow, interpretable
Louvain Greedily optimize modularity Fast, widely used
Spectral Eigenvectors of Laplacian Principled; minimizes edges between groups
Leiden Improved Louvain, allows overlaps State of the art

No single “best” algorithm—choice depends on graph size, structure, and goals.

Spectral Clustering Intuition

The graph Laplacian \(L = D - A\) encodes connectivity.

Its eigenvectors reveal structure:

  • First eigenvector: constant (trivial)
  • Second eigenvector: signs indicate two-way partition
  • More eigenvectors: finer partitions

Fiedler vector (second eigenvector) provides a principled way to split a graph.

Graphs and Machine Learning

Graphs as Feature Sources

Traditional ML on graphs: extract features, then apply standard ML methods to features.

Node features:

  • Degree, centrality measures
  • Community membership
  • Local clustering coefficient

Graph features:

  • Density, diameter
  • Degree distribution
  • Modularity

GNN: Graph Neural Networks (Brief)

Modern approach: learn node representations directly from graph structure.

Message passing: Nodes aggregate information from neighbors, iteratively.

\[h_v^{(k+1)} = \text{UPDATE}\left(h_v^{(k)}, \text{AGGREGATE}\left(\{h_u^{(k)} : u \in N(v)\}\right)\right)\]

GNNs can learn features automatically—but require substantial data and compute.

For many problems, classical graph features be preferred: easier to interpret, and less compute-intensive.

The Dual Perspectives Revisited

Structure Enables Both Goals

Perspective Methods Questions
Understanding Centrality, communities, components Who matters? What groups exist? How does information flow?
Prediction Link prediction, recommendation, node classification What will happen? What should we recommend?

The same graph structure serves both: understanding why and predicting what.

From Social to Semantic

Our three examples show increasing semantic richness:

Example Nodes Edges Semantics
Karate Club People Interacts Homogeneous
MovieLens Users, Movies Rates Bipartite, weighted
LearningGraph Learners, Skills, Roles, Courses Multiple types Knowledge graph

Richer semantics → richer reasoning, but also more complex modeling.

Key Takeaways

  1. Graphs encode relationships—and relationships are information.

  2. Structure reveals mechanism—communities exist because of homophily; centrality reflects influence pathways.

  3. The same structure serves prediction and understanding—predicting future connections exploits the patterns that community detection reveals.

  4. Knowledge graphs add semantics—typed nodes and labeled edges enable richer queries and reasoning.

Summary and Resources

What We Covered

  • Three examples: Karate Club, MovieLens, LearningGraph
  • Fundamental concepts: Nodes, edges, matrices, paths
  • Centrality measures: Degree, betweenness, PageRank
  • Community detection: Modularity, Louvain, spectral methods
  • ML connections: Graph-derived features, predicting new edges, GNNs

Key R Packages

Package Purpose
igraph Graph creation, algorithms, analysis
tidygraph Tidy interface to igraph
ggraph ggplot2-style visualization
igraphdata Built-in datasets

Resources

Textbooks:

  • Newman, Networks (2nd ed., 2018) — comprehensive reference
  • Barabási, Network Science (2016) — free online, beautifully illustrated
  • Easley & Kleinberg, Networks, Crowds, and Markets (2010) — interdisciplinary

Tutorial:

  • Ognyanova, “Network Visualization with R” (kateto.net)

Exercises

Team Exercise 1: Karate Club Centrality

Load the Karate Club network using igraph::make_graph("Zachary"):

  1. Compute betweenness centrality for all nodes.
  2. Which node has the highest betweenness?
  3. Why does this make sense sociologically—what role does this node play?
  4. Compare to degree centrality. Do the rankings agree?

Team Exercise 2: Community Detection

Apply the Louvain algorithm (igraph::cluster_louvain()) to the Karate Club:

  1. How many communities does it find?
  2. Compare the detected communities to the known faction split (Mr. Hi vs. John A).
  3. Which nodes, if any, are “misclassified”? Why might this be?
  4. Try Walktrap (igraph::cluster_walktrap()). Do the results differ?

Team Exercise 3: LearningGraph Exploration

Install eda4mldata from GitHub and load learning_graph:

  1. Build the skill prerequisite graph from learning_graph$edges$prerequisite.
  2. Verify that it is acyclic. What would a cycle mean pedagogically?
  3. Find the skill with the most prerequisites (highest in-degree).
  4. Find the skill that is prerequisite to the most others (highest out-degree).

Team Exercise 4: Bipartite Projection

Create a bipartite graph: students × courses they’ve taken.

  • Alice: Math, Stats, Programming
  • Bob: Stats, Programming, ML
  • Carol: Math, Stats
  • Dan: Programming, ML
  1. Project onto students (edges connect students sharing courses).
  2. What are the edge weights? Which pair is most similar?
  3. Project onto courses. What does an edge between two courses mean?
  4. When is bipartite projection useful in practice?

Discussion Questions

  1. Social networks, citation networks, and neural networks are all called “networks.” What do they share? How do they differ?

  2. When would betweenness centrality be more informative than degree centrality?

  3. How do graph-derived features differ from tabular features for machine learning?
